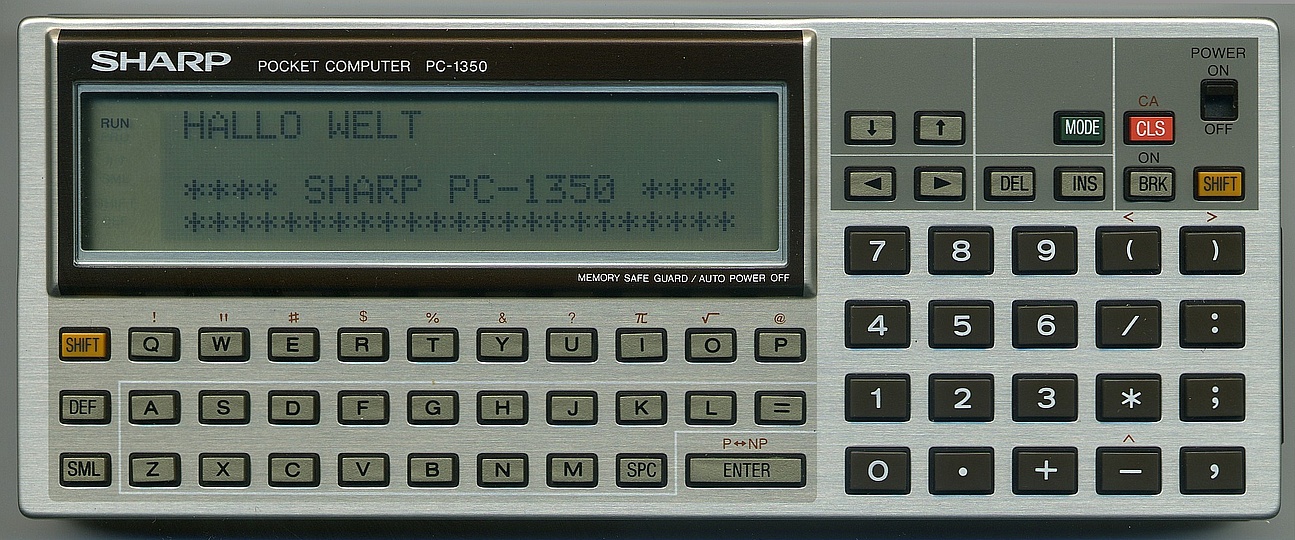

SHARP Pocket Computer PC-1350 |
Wissenschaftlicher Rechner, programmierbar, grafikfähig |
 |
| CPU | CMOS 8 bit, SC61860 A13 | Abmessungen | 182 (B) x 72 (T) x 16 (H) mm | Anzahl der Tasten | 62 |
| Programmiersprache | Basic | Gewicht | 241 g (inkl. Batterien, Hardcover) | Schiebeschalter | On/Off |
| Maschinensprache | Ja - PEEK, POKE, CALL, CSAVE M, CLOAD M | Batterien | 2 x CR2032 | All reset | Taster auf der Rückseite |
| Display | 4 Zeilen mit je 24 Zeichen (5x7 Matrix) | Betriebsspannung | 6 Volt | Displaykontrast | Kontrastregler auf der rechten Seite |
| Grafik | 150x32 Pixel, GCURSOR, GPRINT, LINE, POINT, PRESET, PSET | Leistung | 0,03 Watt | Calculator Modus | Nein |
| RAM verfügbar | 3070 Byte (ohne RAM-Karte) | RAM Slots | 1x RAM-Karte full-size (optional) | Weitere Modi | RSV |
| Standardvariable | A-Z bzw. A$-Z$, 26 x 8 Byte = 208 Byte | Schnittstelle links | 11 pol. Buchsenleiste | Lautsprecher | Ja - Piezo-Beeper |
| System ROM | 40 kByte | Schnittstelle rechts | 15 pol. seriell I/O | Erscheinungsjahr | 1983 |
 |
 |
| Codetabelle | ||||||
|---|---|---|---|---|---|---|
| &9x | &Ax | &Bx | &Cx | &Dx | &Ex | |
| &x0 | RND | RUN | RANDOM | TO | GOSUB | |
| &x1 | LN | AND | NEW | DEGREE | STEP | AREAD |
| &x2 | LOG | OR | CONT | RADIAN | THEN | LPRINT |
| &x3 | EXP | NOT | PASS | GRAD | ON | RETURN |
| &x4 | SQR | ASC | LIST | BEEP | IF | RESTORE |
| &x5 | SIN | VAL | LLIST | WAIT | FOR | CHAIN |
| &x6 | COS | LEN | CSAVE | GOTO | LET | GCURSOR |
| &x7 | TAN | PEEK | CLOAD | TRON | REM | GPRINT |
| &x8 | INT | CHR$ | MERGE | TROFF | END | LINE |
| &x9 | ABS | STR$ | CLEAR | NEXT | POINT | |
| &xA | SGN | MID$ | USING | STOP | PSET | |
| &xB | DEG | LEFT$ | OPEN | DIM | READ | PRESET |
| &xC | DMS | RIGHT$ | CLOSE | CALL | DATA | BASIC |
| &xD | ASN | INKEY$ | SAVE | POKE | PAUSE | TEXT |
| &xE | ACS | PI | LOAD | CLS | OPEN$ | |
| &xF | ATN | MEM | CONSOLE | CURSOR | INPUT | |
| Im Originalhandbuch nicht dokumentiert | ||||||
| Standardvariable | |||||
|---|---|---|---|---|---|
| Numerisch | Text | Hex | Dez | A | A(1) | A$ | A$(1) | &6CF8 - &6CFF | 27896 - 27903 |
| B | A(2) | B$ | A$(2) | &6CF0 - &6CF7 | 27888 – 27895 |
| C | A(3) | C$ | A$(3) | &6CE8 - &6CEF | 27880 – 27887 |
| D | A(4) | D$ | A$(4) | &6CE0 - &6CE7 | 27872 – 27879 |
| E | A(5) | E$ | A$(5) | &6CD8 - &6CDF | 27864 – 27871 |
| F | A(6) | F$ | A$(6) | &6CD0 - &6CD7 | 27856 – 27863 |
| G | A(7) | G$ | A$(7) | &6CC8 - &6CCF | 27848 – 27855 |
| H | A(8) | H$ | A$(8) | &6CC0 - &6CC7 | 27840 – 27847 |
| I | A(9) | I$ | A$(9) | &6CB8 - &6CBF | 27832 – 27839 |
| J | A(10) | J$ | A$(10) | &6CB0 - &6CB7 | 27824 – 27831 |
| K | A(11) | K$ | A$(11) | &6CA8 - &6CAF | 27816 – 27823 |
| L | A(12) | L$ | A$(12) | &6CA0 - &6CA7 | 27808 – 27815 |
| M | A(13) | M$ | A$(13) | &6C98 - &6C9F | 27800 – 27807 |
| N | A(14) | N$ | A$(14) | &6C90 - &6C97 | 27792 – 27799 |
| O | A(15) | O$ | A$(15) | &6C88 - &6C8F | 27784 – 27791 |
| P | A(16) | P$ | A$(16) | &6C80 - &6C87 | 27776 – 27783 |
| Q | A(17) | Q$ | A$(17) | &6C78 - &6C7F | 27768 – 27775 |
| R | A(18) | R$ | A$(18) | &6C70 - &6C77 | 27760 – 27767 |
| S | A(19) | S$ | A$(19) | &6C68 - &6C6F | 27752 – 27759 |
| T | A(20) | T$ | A$(20) | &6C60 - &6C67 | 27744 – 27751 |
| U | A(21) | U$ | A$(21) | &6C58 - &6C5F | 27736 – 27743 |
| V | A(22) | V$ | A$(22) | &6C50 - &6C57 | 27728 – 27735 |
| W | A(23) | W$ | A$(23) | &6C48 - &6C4F | 27720 – 27727 |
| X | A(24) | X$ | A$(24) | &6C40 - &6C47 | 27712 – 27719 |
| Y | A(25) | Y$ | A$(25) | &6C38 - &6C3F | 27704 – 27711 |
| Z | A(26) | Z$ | A$(26) | &6C30 - &6C37 | 27696 – 27703 |
| 11 polige Buchsenleiste | ||
|---|---|---|
| 1 | I | MT2 (Piezo-Beeper) |
| 2 | VC (+) | |
| 3 | GND (-) | |
| 4 | O | Fo3 (Busy) |
| 5 | O | Fo2 (Dout) |
| 6 | I | Xin |
| 7 | O | Xout |
| 8 | I/O | IB8 (Din) |
| 9 | I/O | IB7 (Ack) |
| 10 | nc | |
| 11 | nc | |
| 15 polige Kontaktleiste | |||||
|---|---|---|---|---|---|
| 1 | FG | Gehäuse | |||
| 2 | O | SD (TD) | Out1/In1 (SC60220) | Fo4 (SC61860) | Send data |
| 3 | I/O | RD | IB4 (SC61860), Pullup | Received data | |
| 4 | O | RS (RTS) | Out3/In3 (SC60220) | IB2 (SC61860) | Request to send |
| 5 | I/O | CS (CTS) | IB5 (SC61860), Pullup | Clear to send | |
| 6 | nc | ||||
| 7 | GND (-) | ||||
| 8 | I/O | CD | IB6 (SC61860), Pullup | Carrier detect | |
| 9 | nc | ||||
| 10 | VC (+) | ||||
| 11 | O | RR | Out4/In4 (SC60220) | IB3 (SC61860) | Receive ready |
| 12 | nc | ||||
| 13 | VC (+) | ||||
| 14 | O | ER (DTR) | Out2/In2 (SC60220) | IB1 (SC61860) | Equipment ready |
| 15 | nc | ||||
 |
